Production at Scale in America
We are building hundreds of packs a week for FPV, UAS, and robotics platforms— with processes tuned for repeatability, fast changeovers, and consistent quality across every lot.
Quality Materials Quality Processes
We use thick nickel-plated copper busbars and CNC micro TIG welding to ensure our packs can handle your demanding applications. We pull-test coupons from every electrode used to ensure quality and repeatability.

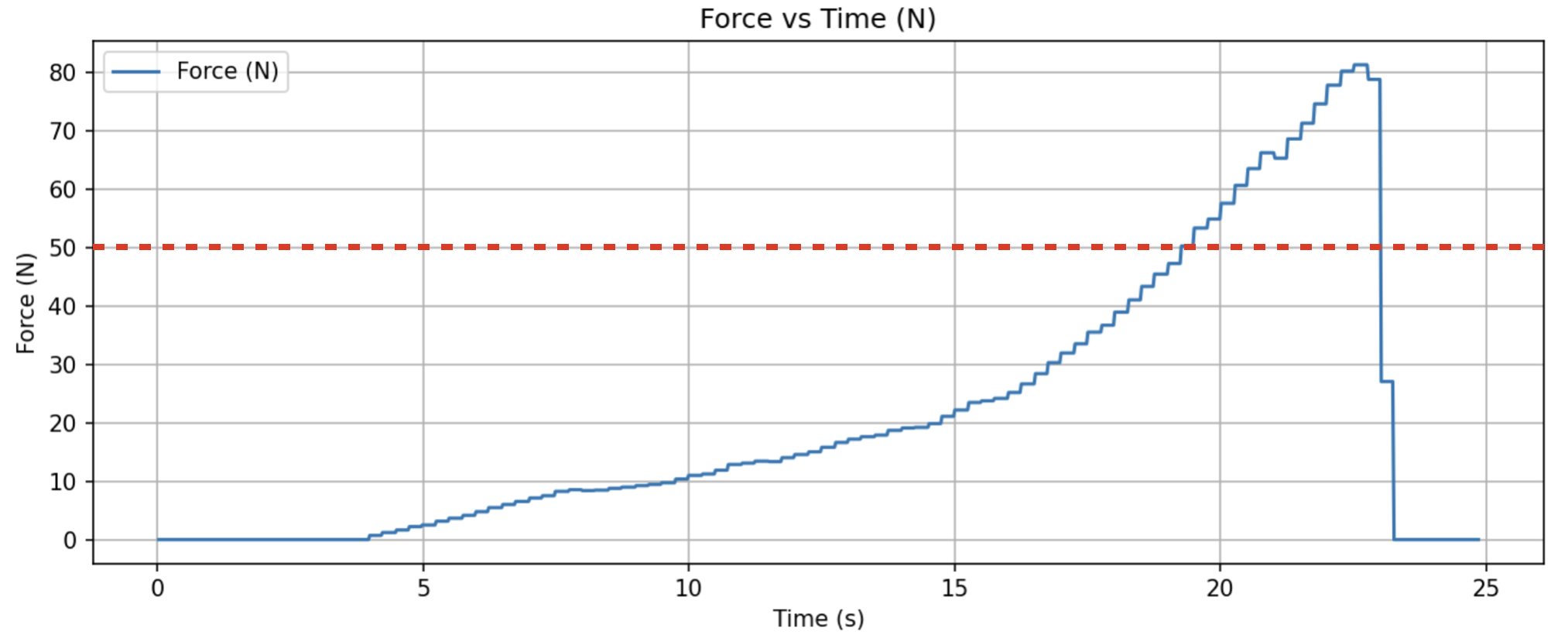

Pull Testing
CNC Micro Tig Welding
Testing is Critical Certs are Required
We are a test first organization. We follow the motto "move fast and break things". This lets us get you tested batteries as quickly as possible.
On the Compliance side of things we are:
On the Compliance side of things we are:
- - NDAA Compliant
- - Assembled in America
- - UN38.3 Compliance - IN PROGRESS
MIL-STD-810H 516.8 Transit Drop (5ft)

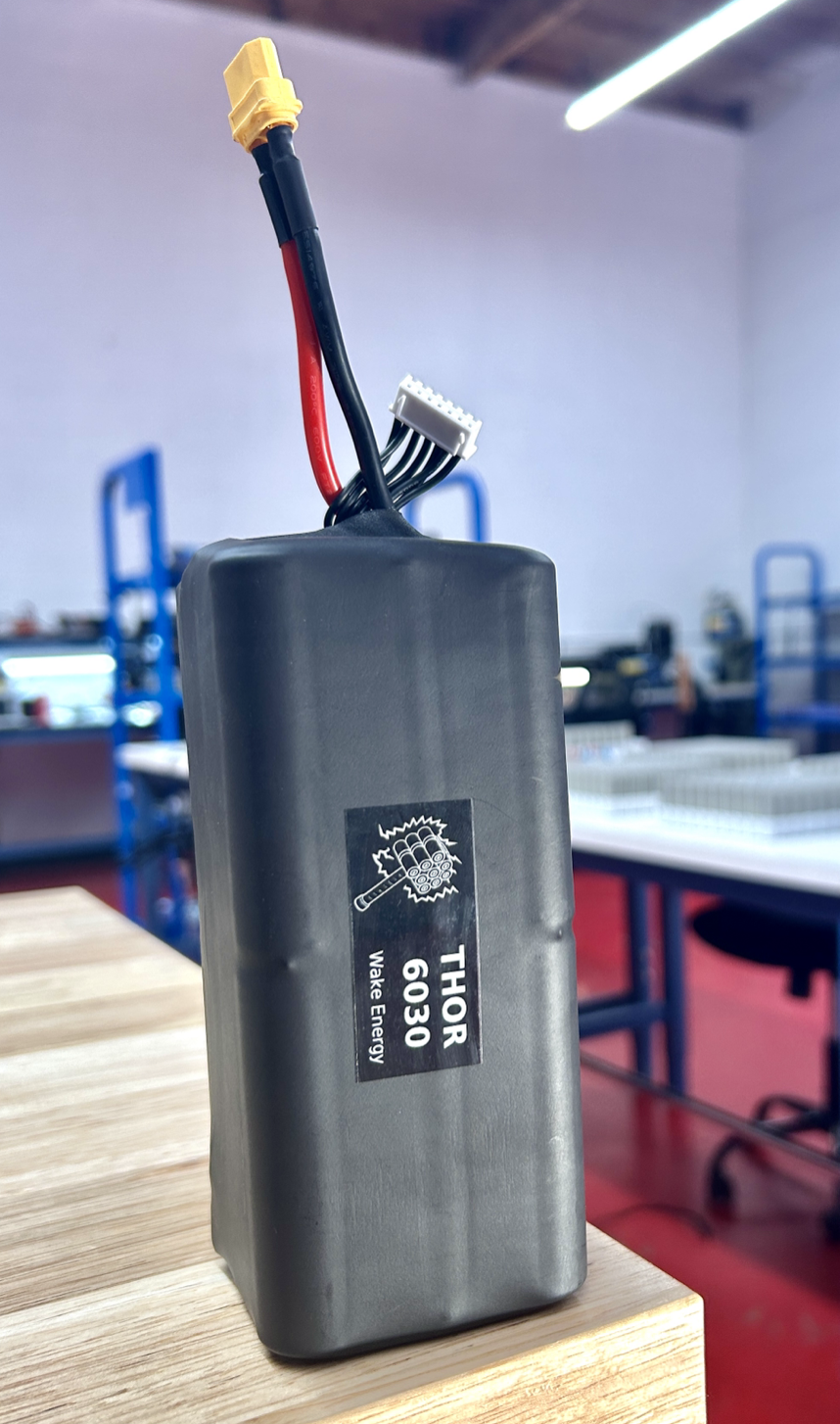

THOR 6030
High-performance 6S3P lithium-ion pack for FPV drones, UAS, and robotics — assembled in the USA with Taiwanese cells.
| Product Overview | |
|---|---|
| Application | High-performance FPV drones, UAS, Robotics |
| Assembly | Assembled in USA with Taiwanese Cells |
| Cell Configuration | 6S3P (6 series, 3 parallel) |
| Nominal Voltage | 21.6 V |
| Nominal Capacity | 15,000 mAh |
| Energy | ~324 Wh |
| Chemistry | Lithium Ion |
| Cell Type | Molicel INR-21700-P50B, or Molicel INR-21700-P45B |
| Electrical Specifications | |
| Nominal Voltage | 21.6 V |
| Charge Voltage (max) | 25.2 V |
| Cutoff Voltage | 15.3 V |
| Capacity (nominal) | 15,000 mAh |
| Energy (typical) | 324 Wh |
| Max Continuous Discharge | 65 A |
| Max Burst Discharge | 140 A for <10s |
| Max Charge Current | 15 A |
| Recommended Charge Rate | 0.5°C to 1°C |
| Thermal Management | Passive air-cooled |
| Mechanical Specifications | |
| Cell Format | 21700 cylindrical |
| Pack Dimensions | ~163 × 70 × 70 mm |
| Weight | 1350 ± 50 g |
| Connector Type | XT60H-F (2 pin) |
| Balancing Lead | JST-XHP-7 (7 pin) |
| Housing | Heat shrink + foam padding |
| Environmental & Safety Ratings | |
| Operating Temp (discharge) | -40°C to +60°C |
| Operating Temp (charge) | -20°C to +60°C |
| Storage Temp | <35°C, <23°C long term |
| Cycle Life | >500 cycles @ ≤80% DoD under normal operating conditions |
| Certifications (Cells) | UN38.3, IEC 62133, UL1642 |
| Certifications (Pack) | N/A |
| BMS / Protection | None |
| Safety & Handling | |
| Storage Voltage | 21 V pack voltage (3.5 V cell) |
| Guidance | Avoid over-discharge below 3.0 V/cell |
| Prohibited | Do not puncture, crush, drop, overheat, or short-circuit |
| Charging | Use proper cell balance when charging |
| Monitoring | Monitor pack temperature during use |
| Protection | Fuse or protect high current paths |
| Intended Use | Use only within electrical and environmental specifications |
| Warranty & Disclaimers | |
| Warranty | 2 months from date of delivery |
| Limitations | Excludes crash, water, overcurrent damage, and use outside specifications |
| Disclaimer | Performance depends on usage and conditions |
High performance custom configurable Lithium-Ion battery packs for the most demanding FPV applications.
Applications
- Drones
- Defense
- Robotics
- Micromobility
